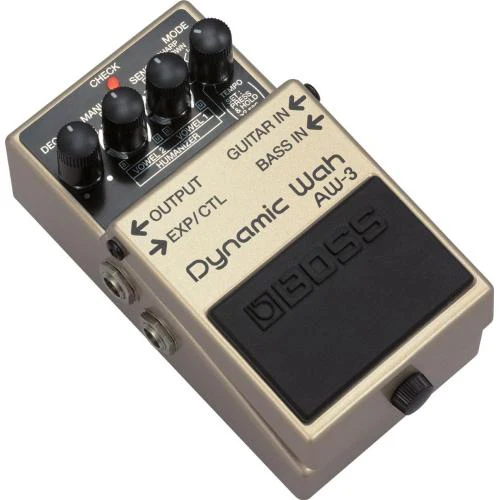

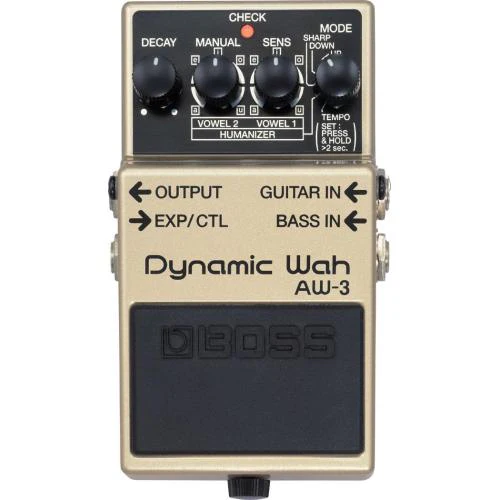

BOSS - AW-3 | Dynamic Wah Pedal
Overview
The BOSS AW-3 Dynamic Wah pedal gives guitarists a wide range of classic auto-wah and dynamic wah effects, plus a new "Humanizer" effect which can simulate human vowel sounds. A Bass input provides a variety of funky wah sounds for bass guitar.
Compact pedal creates a variety of classic "wah" effects
Dynamic wah sounds provide variable effect based on picking strength
"Humanizer" effect creates human voice-type vowel sounds
Dedicated Bass input for processing bass guitar
EXP Pedal mode allows wah control via optional expression pedal
Tempo can be set for pedal control or at fixed rate via Manual mode
BOSS five-year warranty
Specifications
Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls: MODE knob; SENS knob; MANUAL knob; DECAY knob; Pedal switch
Indicator: CHECK indicator (Used for indication of check battery)
Connectors: GUITAR IN jack: 1/4-inch phone type; BASS IN jack: 1/4-inch phone type; OUTPUT jack: 1/4-inch phone type; EXP/CTL jack: 1/4-inch phone type; DC IN jack
Power Supply: Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61); AC adaptor (PSA series: sold separately)
Current Draw: 40 mA
Expected battery life under continuous use: Carbon: Approx. 2 hours; Alkaline: Approx. 10 hours; *These figures will vary depending on the actual conditions of use.
Accessories: Owner's manual; Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"); Carbon-zinc battery (9 V, 6F22)
Options (sold separately): AC adaptor: PSA series; Expression Pedal: Roland EV-5, BOSS FV-500H, FV-500L, EV-30; Footswitch(momentary-type): BOSS FS-5U, FS-7
Width: 73 mm; 2-7/8 inches
Depth: 129 mm; 5-1/8 inches
Height: 59 mm; 2-3/8 inches
Weight (including battery): 420 g; 15 oz
